Hybrid solar system 16kw 20kw complete with Hybrid solar inverter

Name: Hybrid solar system 16kw 20kw complete with Hybrid solar inverter
Brand: zzlysun
Price: 0.60 USD

China Hybrid solar system 16kw 20kw complete with Hybrid solar inverter wholesale

Warranty : 5years

Free installation service : Yes

Place of Origin : Henan, China

Brand Name : zzlysun

Model Number : 16kw/20kw

Application : Home

Solar Panel Type : Monocrystalline Silicon

Battery Type : Lithium Ion, Li-Ion

Controller Type : MPPT

Load Power (W) : 8KW, 20KW, 10KW, 16kw, 26kw

Output Voltage (V) : 400 / 380, 3L / N / PE

Output Frequency : 50/60hz

Work Time (h) : 12hs

Certificate : TUV

Pre-sales project design : Y

Battery Voltage Range (V) : 180~600V

Max. Charging Current (A) : 25A

Charging Strategy for Li-Ion Battery : Self-adaption to BMS

Max. DC Input Power (W) : 19.2kw/26kw

MPPT Range (V) : 200~850V

Max. Input Current (A) : 12.5A

Number of MPPTs : 2

Max. DC Input Voltage (V) : 1000V

Number of Strings per MPPT : 1

Packaging Details : Plywood Case

Port : Shanghai/Ningbo/Qingdao/Guangzhou

Supply Ability : 1000 Pallet/Pallets per Day

MOQ : 10000 watts

Price : $0.60/watts 10000-29999 watts

Contact Now

Hybrid solar system 16kw 20kw complete with Hybrid solar inverter

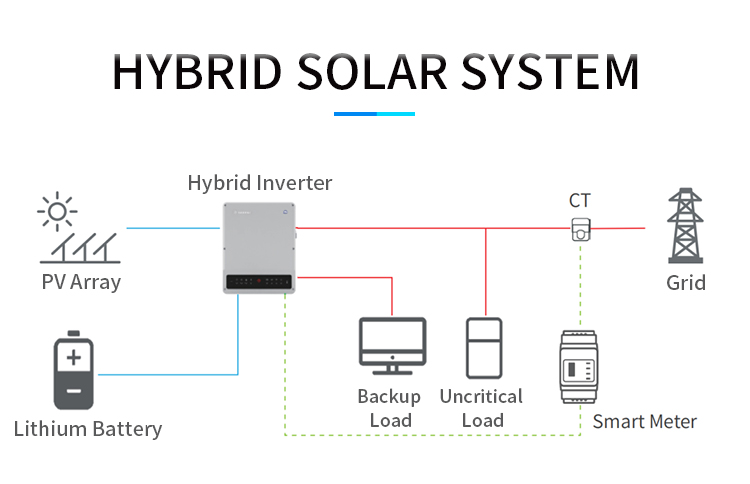

❖ General mode

When the PV is sufficient, the load is given priority to use, and the excess power is charged to the battery, and the excess power will be fed to the grid when the battery is full; when the PV is insufficient, the battery is discharged, and they will together meet the load; The electricity in the PV and the battery is not enough for the load, and it is supplemented by the large power grid。

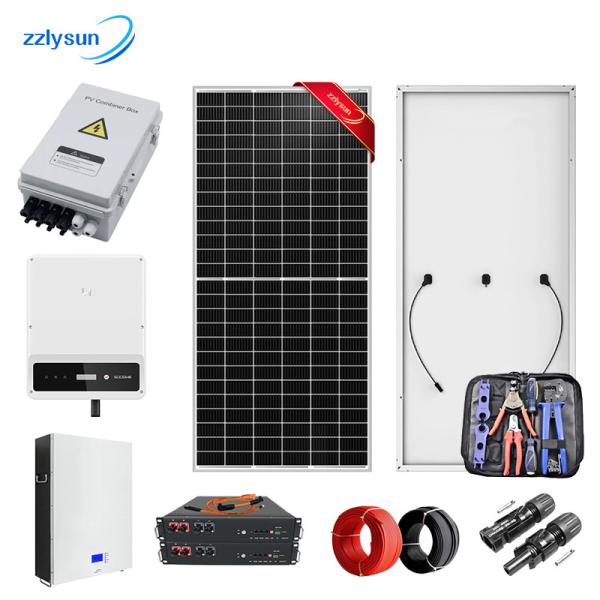

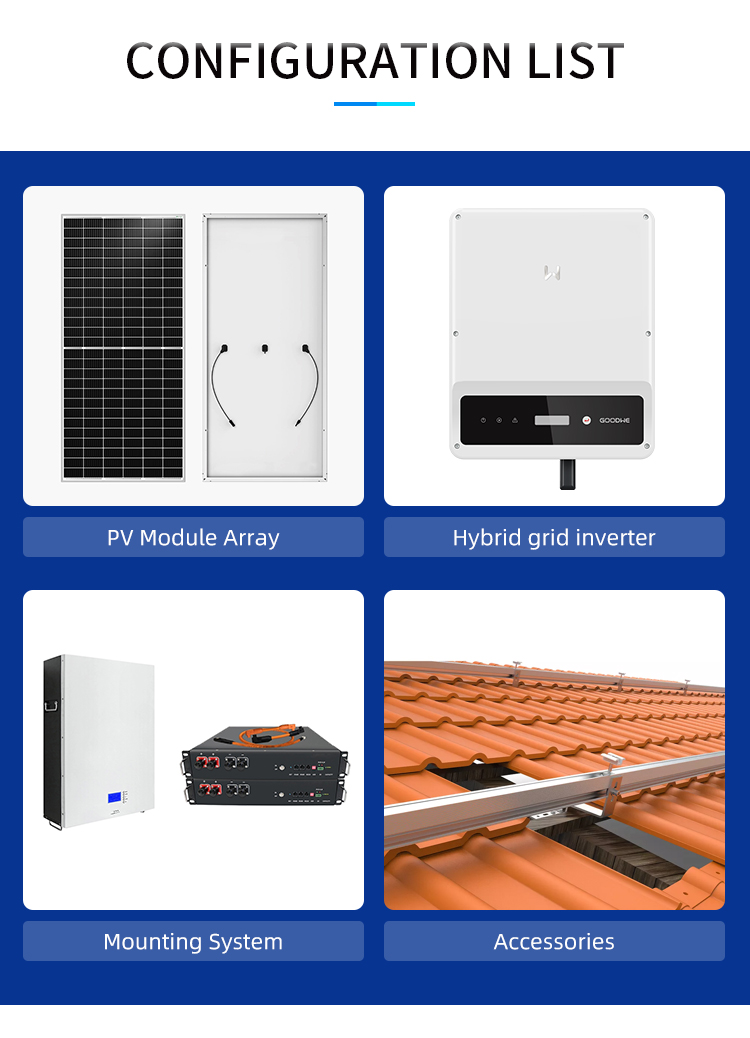

Product List	16kw hybrid solar system	20kw hybrid solar system
PV module	455W Solar Panel*36pcs	455W Solar Panel*46pcs
PV Combiner Box	4 input 4 output	4 input 4 output
Hybrid Solar Inverter	Goodwe hybrid inverter 8KW*2pcs	Goodwe hybrid inverter 10KW*2pcs
Powerwall Lithium Battery	20.48KWH	20.48KWH
PV Cable	4mm2*400m	4mm2*400m
MC4 Connector	10pcs	10pcs
Mounting System	Roof mounting/Ground mounting	Roof mounting/Ground mounting
Installation tools	1pc	1pc

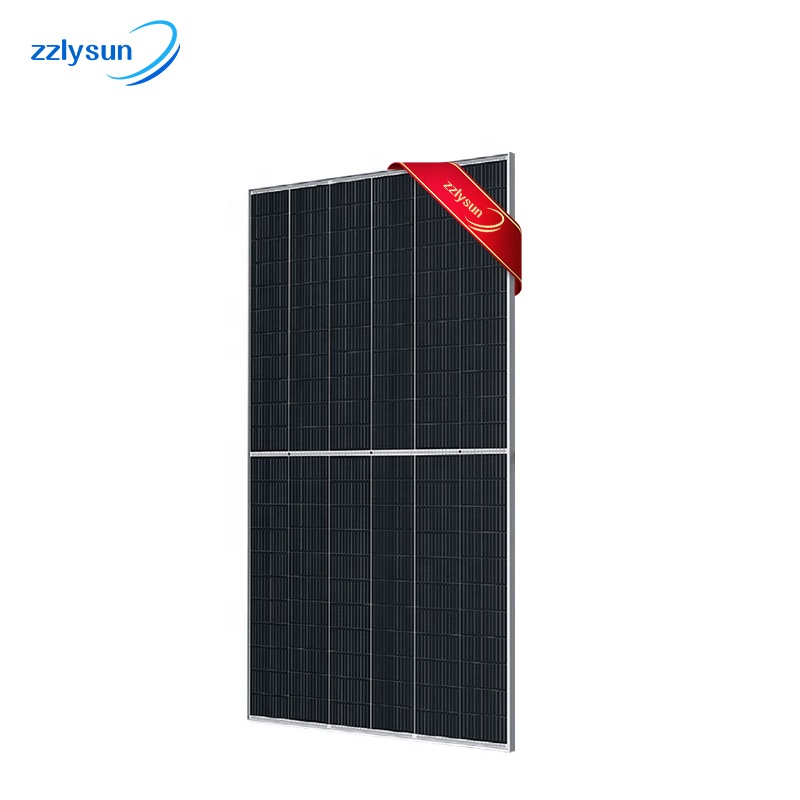

❖ Solar Panel

1.Power:445~470W

2.The quantity of Cell:144PCS
3.Solar cells size:166*83mm
4.Dimensions:2094x1038x35mm(LxWx H)
5.Open Circuit Voltage-Voc[V]:49.56V
6.Short Circuit Current-lsc[A]:11.32A
7.Max Power Voltage-Vmp[V]:41.21V
8.Max Power Current-lmp[A]:10.08A
9.Module Efficiency：20.47%

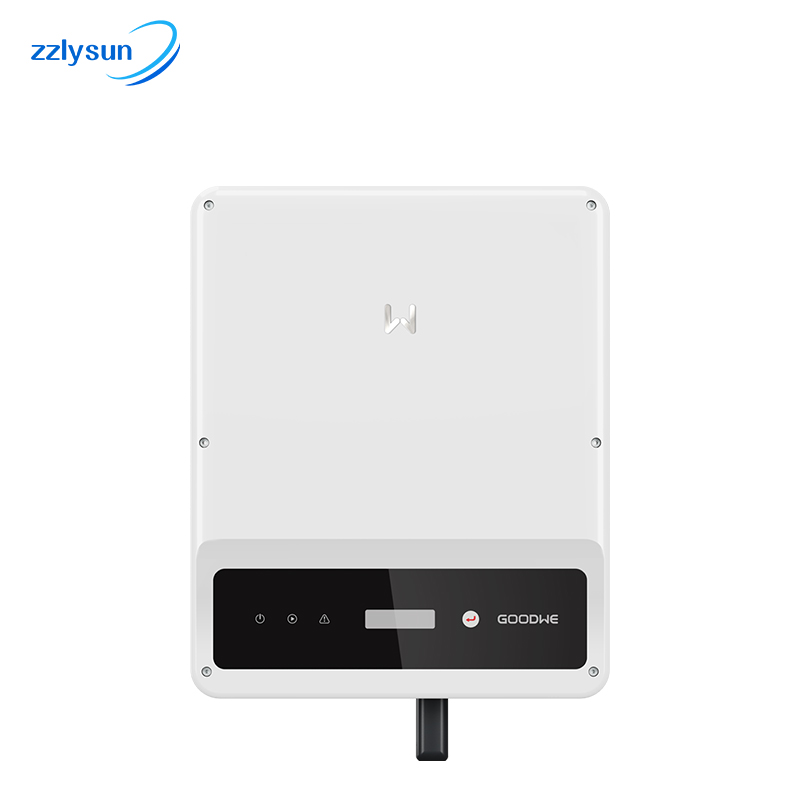

❖ Hybrid Grid Solar Inverter

1. Rate Power: 16KW/20KW
2.MPP voltage range:200V-850V
3.AC Voltage Regulation:380V/400v

4.AC grid frequency:50Hz/60Hz
5.Max PV Power:19.2KW/26KW
6. MPPT Efficiency :98.2%
7.AC grid connection type:3W+N+PE
8.Nominal voltage:620V
9.No. of MPP trackers:2pcs
10.Max. input current per MPP tracker:12.5A

❖ Lithium Battery

1. Nominal Voltage:204.8V
2. Capacity:100Ah
3.Energy:20.48KWh
4. Cycle Life:
≥5000 cycles @ 80% DOD, 25℃, 0.5C
≥4000 cycles @ 80% DOD, 40℃, 0.5C
5. Design Life:≥10 years
6.Charge Cut-off Voltage:228V±0.5V
7.Dimensions:930*415*590 mm
8.Weight:Approx 260kg

❖ Accessories

1.PV Combiner Box
(Anti-reverse/SPD/Fuse/Busbar/Breaker 63A1000V)

2.MC4 Connector
Rated current: 30A Rated voltage: 1000VDC

❖ Accessories

1. Installation tolls
Wire Crimper, Stripper, MC4 Connector Wrench

2.PV DC Cable
4mm2 or 6mm2

❖ Mounting Bracket

1. Good Appearance

2.Easy and flexible installation. 3.Diversified design
4.Light dead-weight
5.Save installation materials

❖ Advantage

The hybrid soar system are suitable for the country,which are the payment bill is expensive .The charging and discharging time of the battery is set.When the local grid price is in the peak stage ,the battery is discharged to the load,when the local grid price is in the trough stage,the battery will be charged by the power grid.

❖ Company

The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!

❖ Quality gurantee

The solar panel should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.

❖ Certificate

1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.

2.The solar inverter certificate is depend on the
different brand,the accurate certificate will be provided by us if you can contact with us directy.

FAQ

1.What kind of product can you provide ?
Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.

2.How much power energy can your company provide?
Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.

3.Who is your service customer?
Re:Individual client for house solar systems; distributor; importer and solar energy system installer.

4.What is your warranty and after-sales policy?
Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem,will let us freely.

5.How many days will the product delivery?
Re:All the package will shipped within 10~20 working days after your payment.
